Air Industrial Air Compressors Oilless / Oil Free Air Compressors & Scroll Air Compressors INGERSOLL RAND SM110

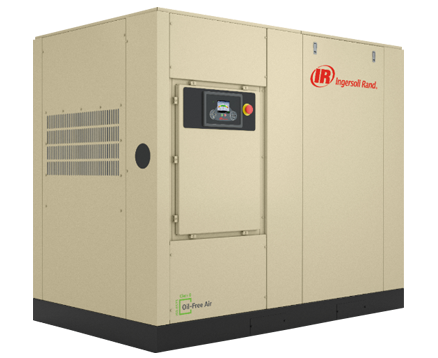

INGERSOLL RAND SIERRA 110KW OIL-FREE ROTARY SCREW COMPRESSORS SM110

Ingersoll Rand SM110 is a two-stage oil-free rotary screw air compressor designed to delivers ISO Class 0 rotary-screw technology for critical manufacturing processes. It delivers a capacity of 18m3/min with a working pressure of 8.5barg and 110kW nominal motor rating.

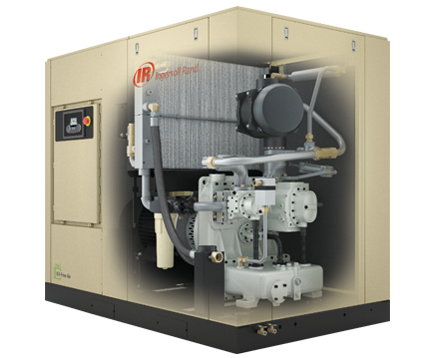

Time proven two-stage compression module features precision-machined rotors and gearing, advanced UltraCoat rotor protection, anti-friction bearings, stainless-steel air seals, and a unique labyrinth oil seal design: ensuring years of reliable and trouble-free operation.
IR oil-free rotary screw compressors have earned ISO 8573-1:2010 Class 0 Certification. Whether you’re in food and beverage, pharmaceuticals, electronics or any other critical application, count on Ingersoll Rand oil-free technology to deliver pure air and peace of mind.

THIS PRODUCT IS AVAILABLE FOR PURCHASE, TO HIRE, OR FINANCE

Learn more
Enquire Now

FEATURES SPECIFICATIONS OPTIONS

FEATURES

  • High efficiency IP55, 380-415V/3PH/50HZ motor
  • 2-Stage oil-free rotary screw airend
  • Air-Cooled aftercooler with moisture separator
  • Integral star delta starter
  • Xe microprocessor controller providing: Sequence up to 4 machines, & On-Line/Off-line control with automatic start & stop

SPECIFICATIONS

  1. Working Pressure (bar) 8.5
  2. Max Pressure (bar)
  3. Capacity (m3/min) 18
  4. Max Capacity (m3/min) 18
  5. Capacity (CFM) 646
  6. Max Capacity (CFM) 646
  7. Power (kW) 110
  8. Cooling Air / Water
  9. Stages 2
  10. Controller Xe
  11. Ambient Min/Max (Degrees C) 5 to 40
  12. Pressure Min/Max (bar) 7
  13. Noise Level dB(A) @1m 79
  14. Drive Type Direct
  15. Power Type Electric
  16. Voltage (V) 415

OPTIONS

  1. Power Outage Restart (PORO)
  2. Remote control (Dry contact signal with Remote Start/Stop, state Feedback, General Alarm; distance < 2km)
  3. High Dust Filter
  4. IP65 (NEMA4) Electrical Fittings
  5. Outdoor Modification
  6. Motor Space Heater
  7. Control Box Space Heater
  8. Duplex Oil Filters
