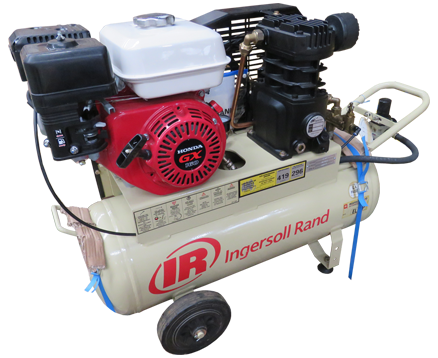

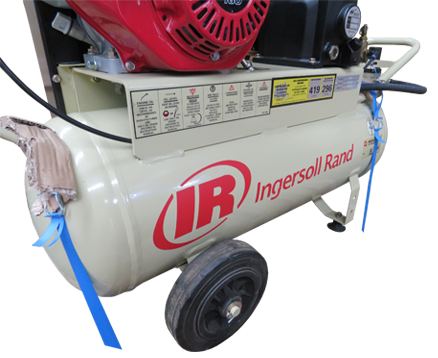

INGERSOLL RAND SCD ELITE SERIES PETROL POWERED Tank Mounted RECIPROCATING COMPRESSORS EL18P

Boasting a robust cast iron pump, the Ingersoll Rand EL18P produces high quality, reliable air that is well-suited to automotive service, fleet maintenance, body shops, wood working shops and much more.
This petrol driven Belt drive unit delivers 10.5cfm at 8.8 barg / 125psi and a motor rating of 5.5hp. It is mounted on a 50 L tank and utilises a 2 cylinder cast iron pump.

THIS PRODUCT IS AVAILABLE FOR PURCHASE

Learn more

Enquire Now

FEATURES SPECIFICATIONS OPTIONS

FEATURES

Genuine Ingersoll Rand cast iron pump.
Low pump speed.
Reliable Honda engine.
Petrol Driven
Pressure relief valve and gauge.
High quality combined filter & regulator
Rated Pressure: 125 PSIG (860 kPag)
Receiver volume: 50 litres

SPECIFICATIONS

Free Air Delivery 10.5cfm/296lpm
Pump SS3 cast iron
NO. of Cylinders 2
Compression Stages 1
Free Speed (rpm) 850
Oil Limit alert Switch
Auto Condense Drain
Motor Size 4kw/5.5hp
Power Type Petrol
Engine Honda
Drive Type Belt
Working Pressure 125psi/865kpa
Starter Pull
Constant/ Dual Controls Constant
Centrifugal Unloader
Air Tank Capacity (L) 50L
Mounted Type Tank Mounted
Weight (kgs) 75
Dimensions Lxlxh (mm) 1060x450x780
NOise Level dB(A)@1m

OPTIONS

Various options available on request such as refrigerated air dryers, inline filters, water separators, regulators, filters and lubricators.
