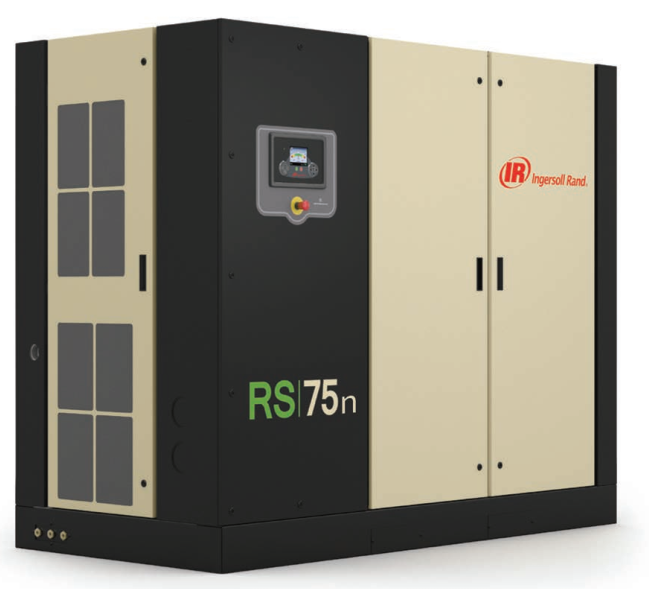

INGERSOLL RAND RS-SERIES 75KW VARIABLE SPEED ROTARY SCREW COMPRESSORS RS75n A

Ingersoll Rand RS75n A is a single stage variable speed rotary screw air compressor designed to provide a capacity of 180-526cfm with a working pressure of 7–10barg and 75kW nominal motor rating.
It features a high efficiency IP55, IE5 Hybrid Reluctance Motor; Unlimited start/stops and shut oﬀ to conserve energy, stable, constant pressure control, virtually no degradation in specific power at partial load, and stable power factor over control range.
Used in compressors worldwide, IR airends are reliable and efficient with precision machined rotors, highest quality tapered roller bearings, and Integrated coolant ﬂow to eliminate leak paths.
This optimised, energy efficient packages deliver the combination of performance and value that best fits your specific needs.

THIS PRODUCT IS AVAILABLE FOR PURCHASE OR FINANCE

Learn more

Enquire Now

FEATURES SPECIFICATIONS OPTIONS

FEATURES

Premium efficiency IP55, IE5 Hybrid Reluctance Motor; 96% efficiency rating,
Air-Cooled aftercooler with condensate separator
AS1210 pressure vessel code available for Aus
Factory-fill of UltraEL Coolant
Xe microprocessor controller providing: Sequence up to 4 machines, and 15 event History Record
Integrated with Line Reactor inside
NEMA4 (IP65) Electronic Protection Level
74 dB(A) low sound enclosure

SPECIFICATIONS

Pressure (bar) 7-10
Pressure (psi) 110-145
Capacity (CFM) 180-526
Capacity (m3/min) 5.1-14.9
Power (kW) 75
Cooling Air Cooled
Stages Single
Controller Xe92
Ambient Min/Max (Degrees C) 2 deg C / 46 deg C
Pressure Min/Max (Bar) 6-10
Noise Level dB(A)@1m 69
Drive Type Direct
Power Type 400/3/50

OPTIONS
