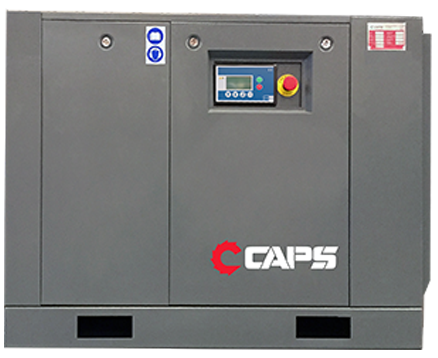

CAPS BRUMBY 11KW BASE MOUNT ROTARY SCREW COMPRESSORS CR11 13

The new CAPS CR11-13 11kW sets the benchmark for affordable and reliable Electric Rotary Screw Air Compressors.

European designed and assembled, the CR Series Screw Compressor range is the perfect solution for any industry and application, covering all sizes from 2kW to 15kW. Every screw compressor model is equipped with the toughest European-made components, ensuring Exceptional performance, efficiency and long-life.

Built on five years of local field trials, CAPS, Australia’s largest locally owned compressor company, have delivered a high-performance and reliable compressor that rivals its expensive European counterparts.

THIS PRODUCT IS AVAILABLE FOR PURCHASE, TO HIRE, OR FINANCE

FEATURES

  • Air-cooled design with 43-degree ambient continuous-duty rating
  • Energy saving MEPS compliant IP55 motor
  • Low sound - acoustic enclosure
  • Easily accessible service components - CAPS service team can provide you with a tailored service program that keeps you focused on your business, not your air supply
  • High-efficiency asymmetric air end
  • Easy to operate electronic controller

SPECIFICATIONS

  1. Pressure (bar) 13
  2. Pressure (psi) 190
  3. Capacity (CFM) 39
  4. Capacity (m3/min) 1.1
  5. Power (kW) 11
  6. Cooling Air Cooled
  7. Stages Single
  8. Controller L26
  9. Ambient Min/Max (Degrees C) 2 deg C / 43 deg C
  10. Pressure Min/Max (Bar) 5 / 13
  11. Noise Level dB(A)@1m 70
  12. Drive Type Belt
  13. Power Type 400/3/50

OPTIONS

  1. High Dust Air Inlet Filter
