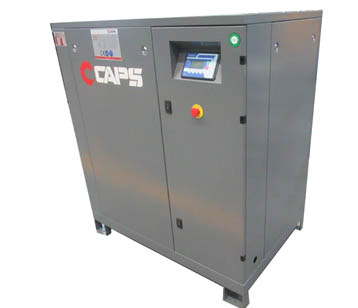

CAPS 45KW ROTARY SCREW COMPRESSORS CR45-7

The new CAPS CR45-7 sets the benchmark for affordable and reliable Electric Rotary Screw Air Compressors.

European designed and assembled, the CR Series Screw Compressor range is the perfect solution for any industry and application, covering all sizes from 2kW to 45kW. Every screw compressor model is equipped with the toughest European-made components, ensuring exceptional performance, efficiency and long-life.

Built on five years of local field trials, CAPS, Australia’s largest locally owned compressor company, have delivered a high-performance and reliable compressor that rivals its expensive European counterparts.

THIS PRODUCT IS AVAILABLE FOR PURCHASE, TO HIRE, OR FINANCE

Learn more
Enquire Now

FEATURES SPECIFICATIONS OPTIONS

FEATURES

  • Air-cooled design with 43 Deg C ambient continuous-duty rating
  • 380-400v/3ph/50hz, IP55 TEFC motor with a 15% safety factor
  • High Efficiency Asymmetric Airend
  • Star-delta starter
  • Basic Electronic controller Logic 26S
  • Compact Machine design
  • Low sound proof enclosure (69-79 dBA)
  • Simple Belt tensioning system

SPECIFICATIONS

  1. Pressure (bar) 7
  2. Pressure (psi) 110
  3. Capacity (CFM) 254
  4. Capacity (m3/min) 7.2
  5. Power (kW) 45
  6. Cooling Air Cooled
  7. Stages Single
  8. Controller L26S
  9. Ambient Min/Max (Degrees C) 2 deg C / 43 deg C
  10. Pressure Min/Max (Bar) 5 / 7
  11. Noise Level dB(A)@1m 79
  12. Drive Type Belt
  13. Power Type 400/3/50

OPTIONS

  1. High Dust Air Intake Filter
