CAPS 18.5KW ROTARY SCREW COMPRESSORS CR18-10

The new CAPS CR18-10 sets the benchmark for affordable and reliable Electric Rotary Screw Air Compressors.

European designed and assembled, the CR Series Screw Compressor range is the perfect solution for any industry and application, covering all sizes from 2kW to 45kW. Every screw compressor model is equipped with the toughest European-made components, ensuring exceptional performance, efficiency and long-life.

Built on five years of local field trials, CAPS, Australia’s largest locally owned compressor company, have delivered a high-performance and reliable compressor that rivals its expensive European counterparts.

THIS PRODUCT IS AVAILABLE FOR PURCHASE, TO HIRE, OR FINANCE

Learn more

Enquire Now

FEATURES SPECIFICATIONS OPTIONS

FEATURES

Air-cooled design with 43 Deg C ambient continuous-duty rating
380-400v/3ph/50hz, IP55 TEFC motor with a 15% safety factor
High Efficiency Asymmetric Airend

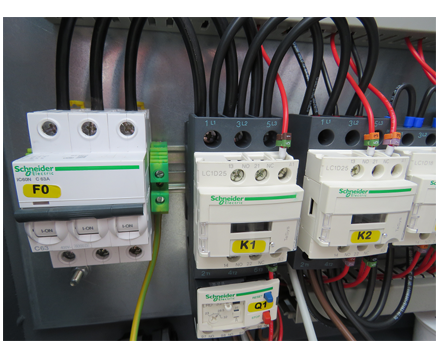

Star-delta starter
Basic Electronic controller Logic 26S
Compact Machine design
Low sound proof enclosure (69-79 dBA)
Simple Belt tensioning system

SPECIFICATIONS

Pressure (bar) 10
Pressure (psi) 145
Capacity (CFM) 99
Capacity (m3/min) 2.8
Power (kW) 18.5
Cooling Air Cooled
Stages Single
Controller L26S
Ambient Min/Max (Degrees C) 2 deg C / 43 deg C
Pressure Min/Max (Bar) 5 / 10
Noise Level dB(A)@1m 79
Drive Type Belt
Power Type 400/3/50

OPTIONS

High Dust Air Intake Filter
