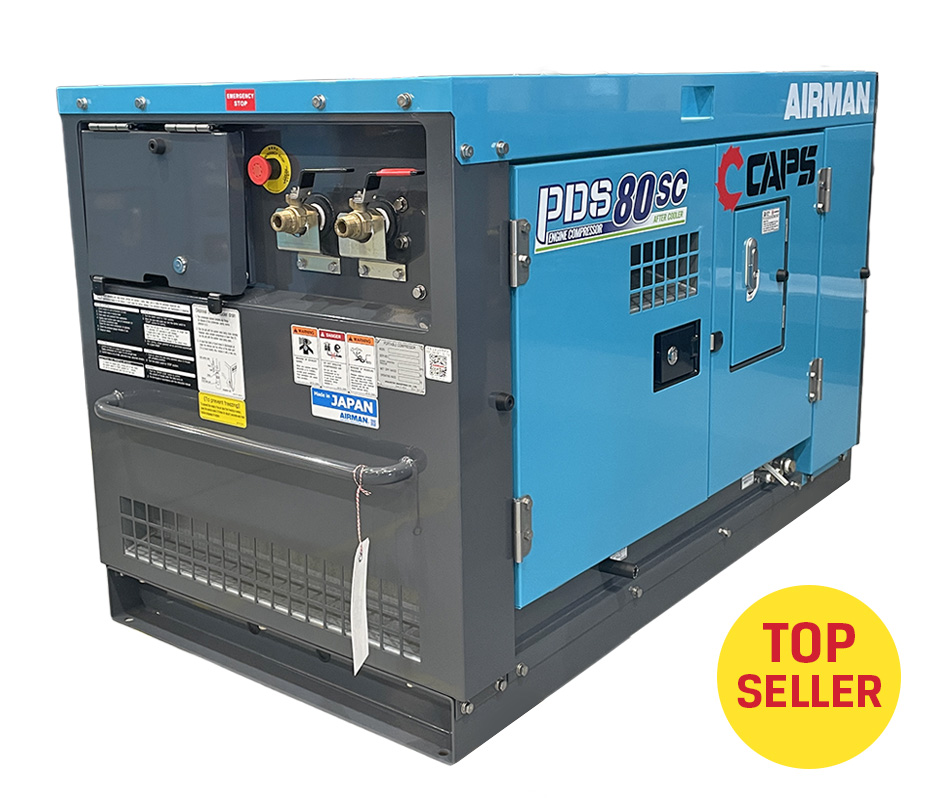

AIRMAN 80CFM BOX-TYPE AFTERCOOLED PORTABLE DIESEL COMPRESSOR PDS80SC-5C5

One of the world’s largest manufacturer of diesel compressors, Airman’s superior engineering is well suited to Australia’s Climatic Conditions. Airman PDS80SC-5C5 is another product that is guaranteed to satisfy every customer’s needs. It is a Box type air compressor that is installed with an aftercooler device. The aftercooler functions much like a heat exchanger that Manages the condensation in the compressed air, ultimately improving reliability and efficiency of the system. Powered by a KUBOTA diesel engine, it is sure to give you enough air power to finish even the toughest of jobs.

THIS PRODUCT IS AVAILABLE FOR PURCHASE OR FINANCE

Learn more

Enquire Now

FEATURES SPECIFICATIONS OPTIONS

FEATURES

NUMBER 1 IN BOX COMPRESSORS
Versatile box design
Quality Japanese manufactured
Kubota engines
Low noise (66 dBA @7m)
120psi max (100psi working pressure)
Aftercooled design

SPECIFICATIONS

Capacity (CFM) 80
Working Pressure (psi) 100
Configuration Box
Capacity (m3/min) 2.2656
Max. Pressure (psi) 120
Aftercooled Yes
Engine KUBOTA D902-K3A
Engine Rated Power (kW) 17.00
Fuel Tank Capacity (L) 25
Run Time (h @ 70% load) 7.4
Dimensions LxWxh (mm) 1,500 x 770 x 865
Weight (Wet/Dry) (kgs) 440/405
Noise Level dB(A)@7m 66

OPTIONS

Battery isolator
Fire extinguisher
Emergency stop button
Jump start
High dust filter
Battery box relocation
Mine spec options
