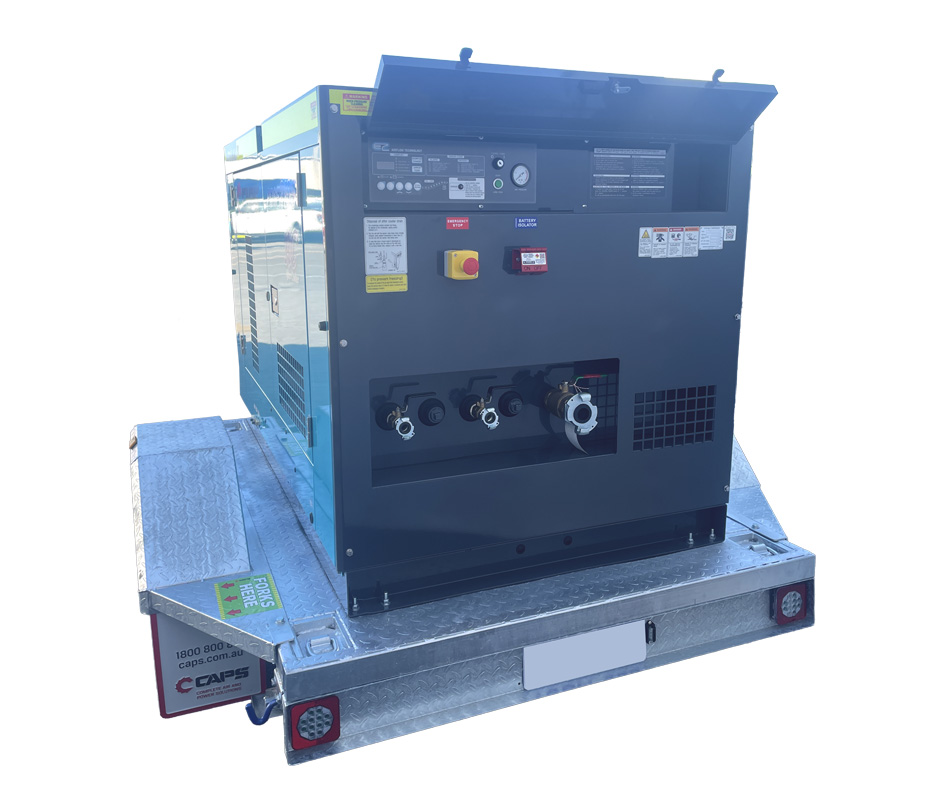

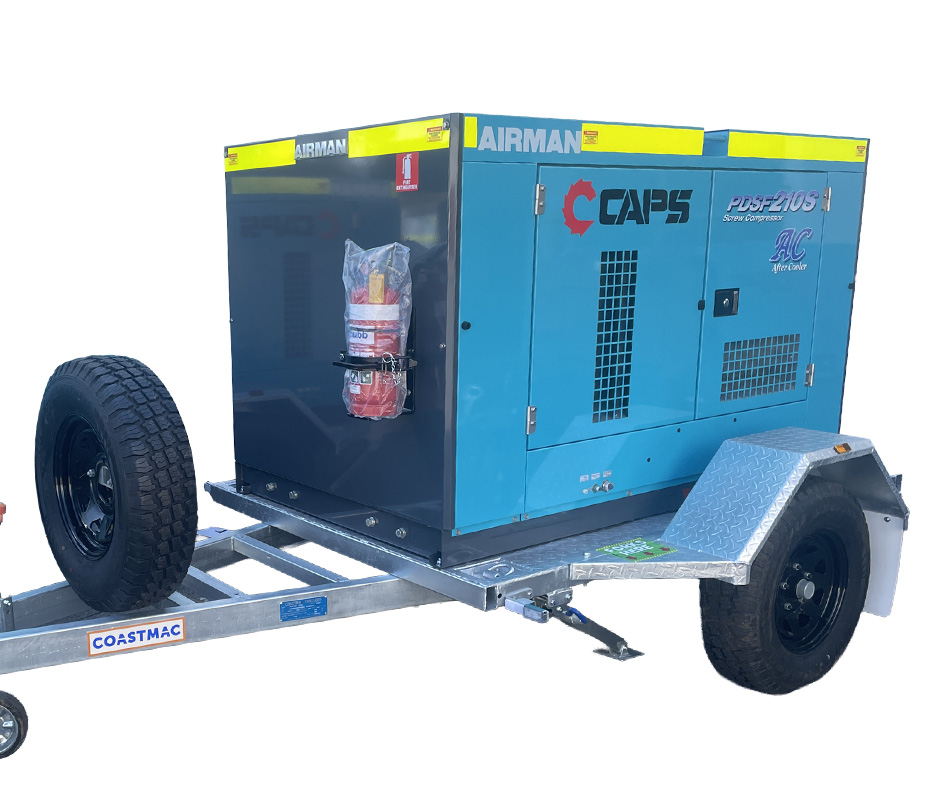

AIRMAN 210CFM TRAILER MOUNTED AFTERCOOLED PORTABLE DIESEL COMPRESSOR – MINE SPEC PDSF210SC-5C3-T

Airman PDSF210SC-5C3-T is another product that is guaranteed to satisfy every customer’s needs. The PDSF210SC-5C3-T trailer mounted air compressor designed for easy mobility, as it can be readily towed by a vehicle to any place at any time of the day. It is a heavy duty high pressure (150psi) compressor that is installed with an aftercooler device. The aftercooler functions much like a heat exchanger that Manages the condensation in the compressed air, ultimately improving reliability and efficiency of the system. Powered by a YANMAR diesel engine, it is sure to give you enough air power to finish even the toughest of jobs and this aftercooled version make it the ideal compressor to work even in extreme weather conditions.

This PDSF210SC-5C3-T has been equipped with mine spec equipment (Starter isolator, Battery isolator, Fire extinguisher, Emergency stop button and CAT Jump start) and  is available to hire across Australia. Contact CAPS for more details.

THIS PRODUCT IS AVAILABLE FOR HIRE

Learn more
Enquire Now

FEATURES SPECIFICATIONS OPTIONS

FEATURES

  • POSSIBLY THE BEST TOWABLE ON THE MARKET
  • Easy to tow – assembled using Australian running gear
  • Quality Japanese manufactured
  • Yanmar engine
  • Aftercooled model
  • 12/24 dual voltage LED lights
  • Low noise level (69 dB(A) @7m)
  • Long run time 115 litre fuel tank
  • 150psi working pressure
  • Starter isolator
  • Battery isolator
  • Fire extinguisher
  • Emergency stop button
  • CAT Jump start

SPECIFICATIONS

  1. Capacity (CFM) 210
  2. Working Pressure (psi) 150
  3. Configuration Trailer
  4. Capacity (m3/min) 5.9472
  5. Max. Pressure (psi) 150
  6. Aftercooled Yes
  7. Engine Yanmar 4TNV98T-NHK
  8. Engine Rated Power (kW) 61.20
  9. Fuel Tank Capacity (L) 115
  10. Run Time (h @ 70% load) 11.3
  11. Dimensions LxWxh (mm) 4,240 x 2,100 x 2,000
  12. Weight (Wet/Dry) (kgs) 1,778/1,650
  13. Noise Level dB(A)@7m 69

OPTIONS

    We have the widest range of precision engineered & robust industrial air and power solutions in Australia.

    • Nationwide Support

    • ISO9001 Certified Manufacturing

    • Technical Expertise

    • Global Capabilities

    This product is part of CAPS Australia’s quality fleet of equipment for hire. For a quick and easily solution to cover your needs, CAPS can offer fast, short-term rentals. We are equally equipped to provide longer term rentals to reduce your capital outlay or serve your project needs. We can also include a full servicing package as required.
