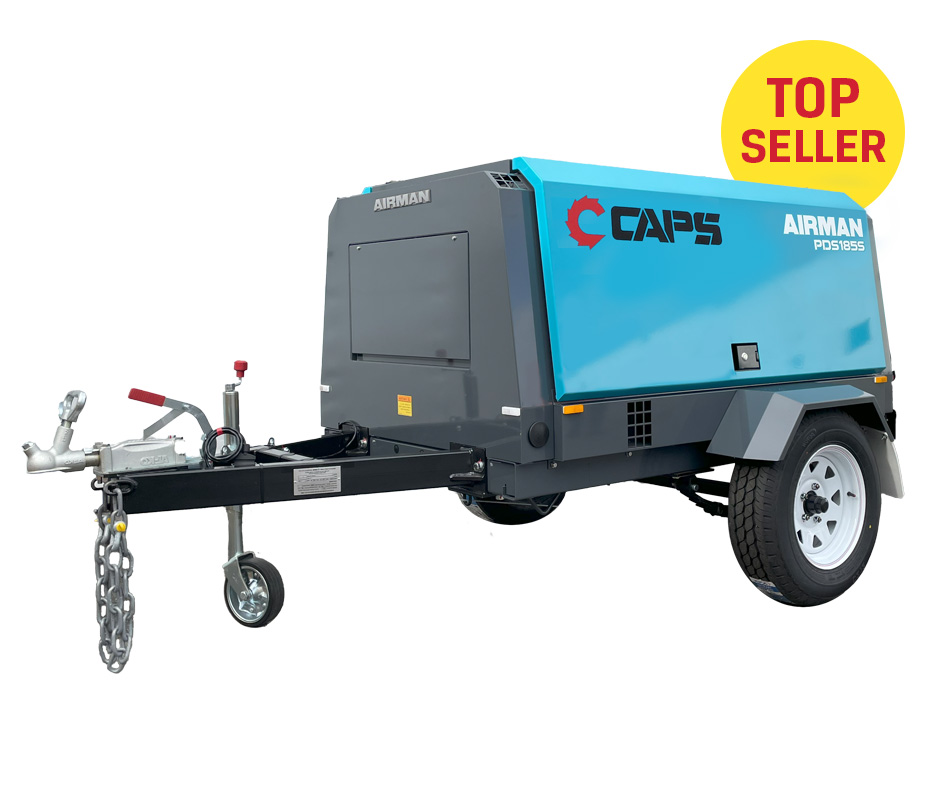

AIRMAN 185CFM TRAILER MOUNTED AFTERCOOLED PORTABLE DIESEL COMPRESSOR – MINE SPEC PDS185SC-6C2-T

The after-cooled Airman PDS185SC-6C2-T trailer mounted 185cfm diesel air compressor offers industry leading performance. An impressive 90 litre fuel tank combined with a YANMAR high fuel efficiency engine provides a run time between fills of double some other makes and can save you thousands in fuel savings and time spent refuelling! The full featured high quality instrument panel tells you everything you need to know at a quick glance and the impressive 1.7m wide track body makes towing and reversing a pleasure. Built tough and durable in Japan with local Australian trailer running gear and fitted with an air after-cooler, make the Airman PDS185SC-6C2-T the smart choice.

This PDS185SC-6C2-T has been equipped with mine spec equipment (Starter isolator, Battery isolator, Fire extinguisher, Emergency stop button and CAT Jump start) and  is available to hire across Australia. Contact CAPS for more details.

THIS PRODUCT IS AVAILABLE FOR HIRE

Learn more
Enquire Now

FEATURES SPECIFICATIONS OPTIONS

FEATURES

  • POSSIBLY THE BEST TOWABLE ON THE MARKET
  • Easy to tow – assembled using Australian running gear
  • Quality Japanese manufactured
  • Yanmar engine
  • Aftercooled model
  • 12/24 dual voltage LED lights
  • Low noise level (70 dB(A) @7m)
  • Extra large 90 litre diesel fuel tank
  • 120psi max (100psi working pressure)
  • Starter isolator
  • Battery isolator
  • Fire extinguisher
  • Emergency stop button
  • CAT Jump start

SPECIFICATIONS

  1. Capacity (CFM) 185
  2. Working Pressure (psi) 100
  3. Configuration Trailer
  4. Capacity (m3/min) 5.2392
  5. Max. Pressure (psi) 120
  6. Aftercooled Yes
  7. Engine Yanmar 4TNV88-BXDHKS
  8. Engine Rated Power (kW) 36.40
  9. Fuel Tank Capacity (L) 90
  10. Run Time (h @ 70% load) 14
  11. Dimensions LxWxh (mm) 3,040 x 1,960 x 1,490
  12. Weight (Wet/Dry) (kgs) 1,039/962
  13. Noise Level dB(A)@7m 69

OPTIONS

    We have the widest range of precision engineered & robust industrial air and power solutions in Australia.

    • Nationwide Support

    • ISO9001 Certified Manufacturing

    • Technical Expertise

    • Global Capabilities

    This product is part of CAPS Australia’s quality fleet of equipment for hire. For a quick and easily solution to cover your needs, CAPS can offer fast, short-term rentals. We are equally equipped to provide longer term rentals to reduce your capital outlay or serve your project needs. We can also include a full servicing package as required.
