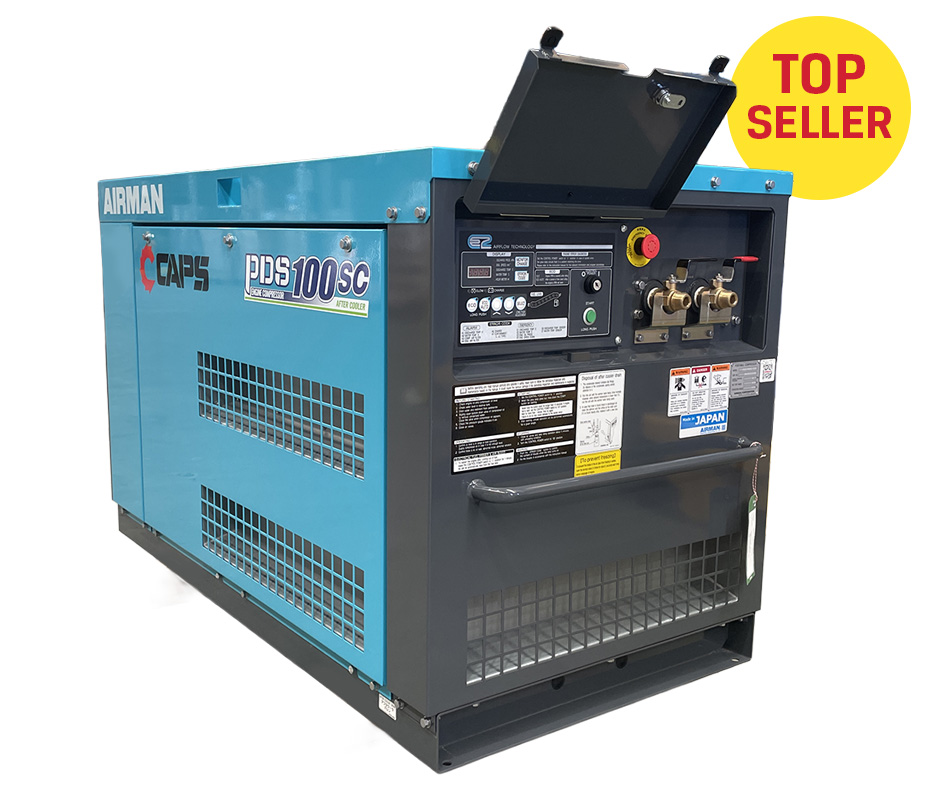

AIRMAN 100CFM AFTERCOOLED PORTABLE DIESEL COMPRESSORS PDS100SC-5C5

One of the world’s largest manufacturer of diesel compressors, Airman’s superior engineering is well suited to Australia’s Climatic Conditions and it is one of the most dependable brands of diesel-powered air compressors in the market today. The PDS100SC-5C5 box-type Airman aftercooled air compressor has been designed to enhance safety in workplaces with safety a key consideration in its design, with a user-friendly control panel and easy maintenance with ample service doors. Powered by a KUBOTA diesel engine, it is sure to give you enough air power to finish even the toughest of jobs. This aftercooled version make it the ideal compressor to work even in extreme weather conditions.

THIS PRODUCT IS AVAILABLE FOR PURCHASE OR FINANCE

FEATURES

  • NUMBER 1 IN BOX COMPRESSORS
  • Versatile box design
  • Quality Japanese manufactured
  • Aftercooled model
  • Kubota engines
  • Low noise (65 dBA @7m)
  • 120psi max (100psi working pressure)

SPECIFICATIONS

  1. Capacity (CFM) 100
  2. Working Pressure (psi) 100
  3. Configuration Box
  4. Capacity (m3/min) 3.3984
  5. Max. Pressure (psi) 120
  6. Aftercooled Yes
  7. Engine KUBOTA D1105-K3B
  8. Engine Rated Power (kW) 15.29
  9. Fuel Tank Capacity (L) 28
  10. Run Time (h @ 70% load) 7
  11. Dimensions LxWxh (mm) 1,580 x 770 x 900
  12. Weight (Wet/Dry) (kgs) 510/470
  13. Noise Level dB(A)@7m 67

OPTIONS

  1. Battery isolator
  2. Fire extinguisher
  3. Emergency stop button
  4. Jump start
  5. High dust filter
  6. Battery box relocation
  7. Mine spec options
